Power for your project.

Explore our power distribution and control products. Download a product flyer or send your requirements to our team.

Listed to UL 891

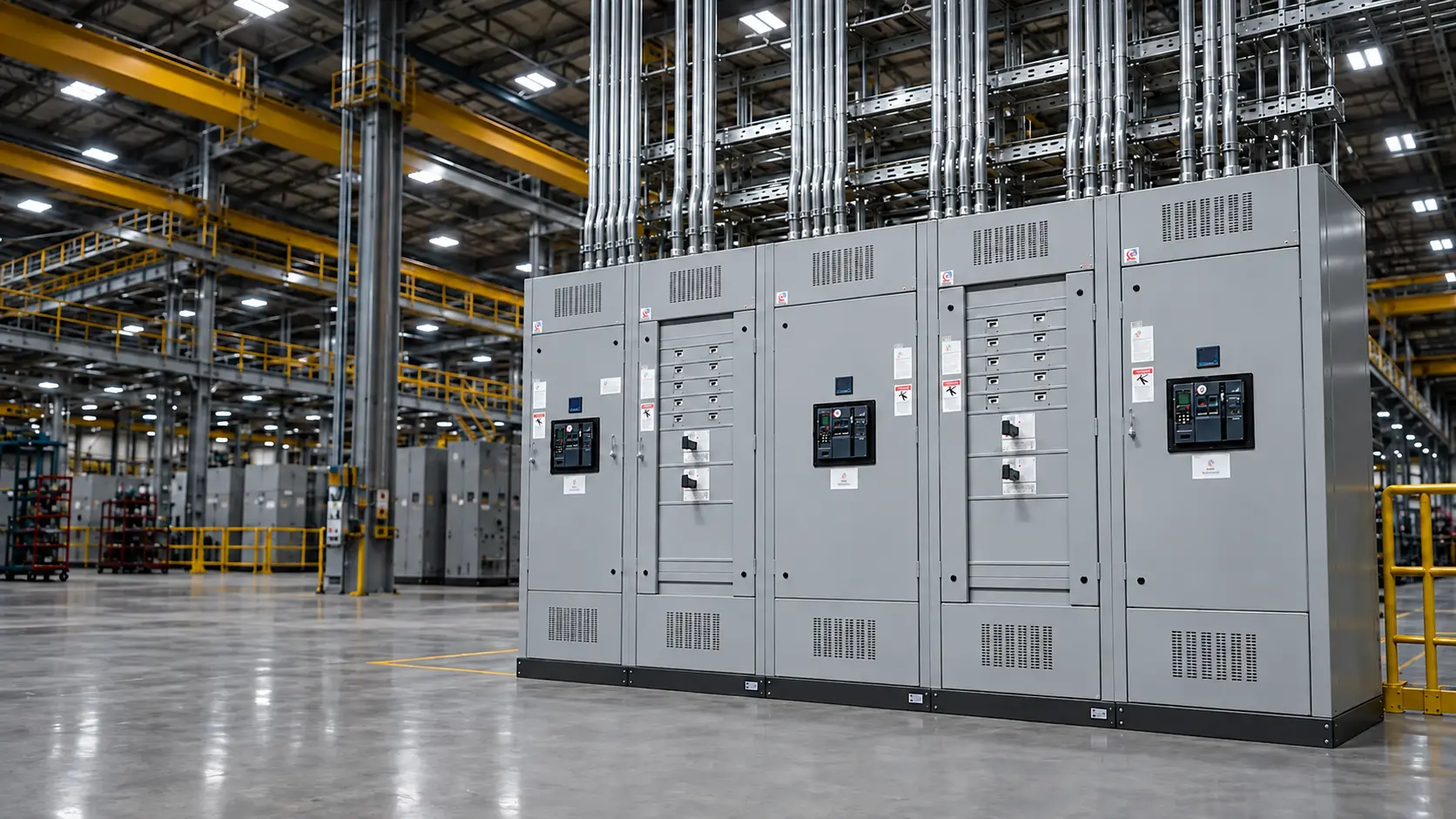

UL Listed Switchboards

Custom low-voltage power distribution

UL Listed Switchboards

UL File No. E528754

Atlas manufactures UL Listed switchboards, listed to UL 891, configured around your service, protection and distribution requirements. Atlas combines modular sections with application-specific bus and device layouts.

Pull, utility, main and distribution sections
ACB main protection with SPD and metering options
MCCB distribution with breaker and provision positions
36-inch and 46-inch standard section widths
90-inch height and 30-inch depth in the online designer
46X and 66X distribution interiors

Download flyer Request a quote

Online layouts are preliminary. Final ratings, dimensions and construction are confirmed by Atlas engineering.

Utility metering

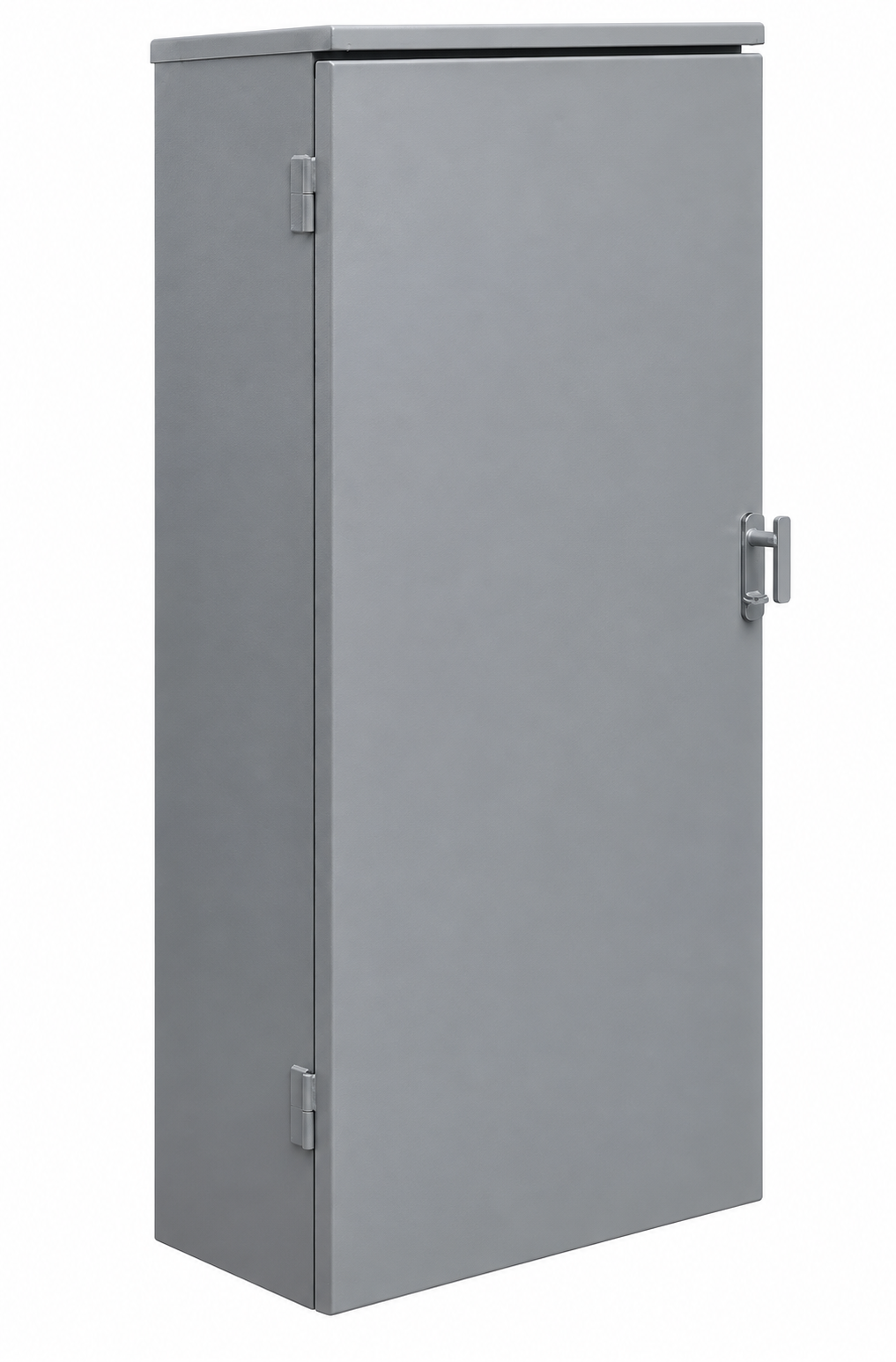

CT Cabinets

Current-transformer metering cabinets

Plan your service-metering enclosure with Atlas. Start with the serving utility requirements, service rating and installation conditions to define the CT cabinet for your project.

Current-transformer cabinet for service metering
Utility-specific layout requirements
Cabinet dimensions coordinated with the application
Incoming and outgoing conductor routing
Metering access and installation requirements

Download flyer Request a quote

Utility acceptance, electrical ratings and certification requirements must be confirmed for the selected configuration.

Portable transformer skid

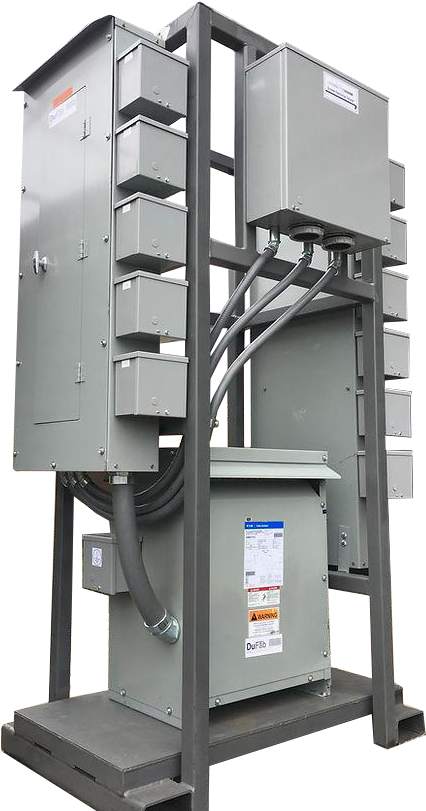

Portable Power Distribution

Temporary power built around your application

Atlas portable transformer skids provide temporary power distribution for construction sites and outdoor events. Configure the skid to suit your power and connection requirements.

45 to 500 kVA transformer configurations
Four-wheel frames available up to 150 kVA
Heavy-duty swivel casters on wheeled models
Four-way forklift pockets and four lifting eyes
Stackable frames and tool basket: 45 to 150 kVA
Polyester powder-coat finish

Download flyer Request a quote

Features vary by model. Confirm the selected configuration and ratings with Atlas when requesting a quote.

PLC and HMI integration

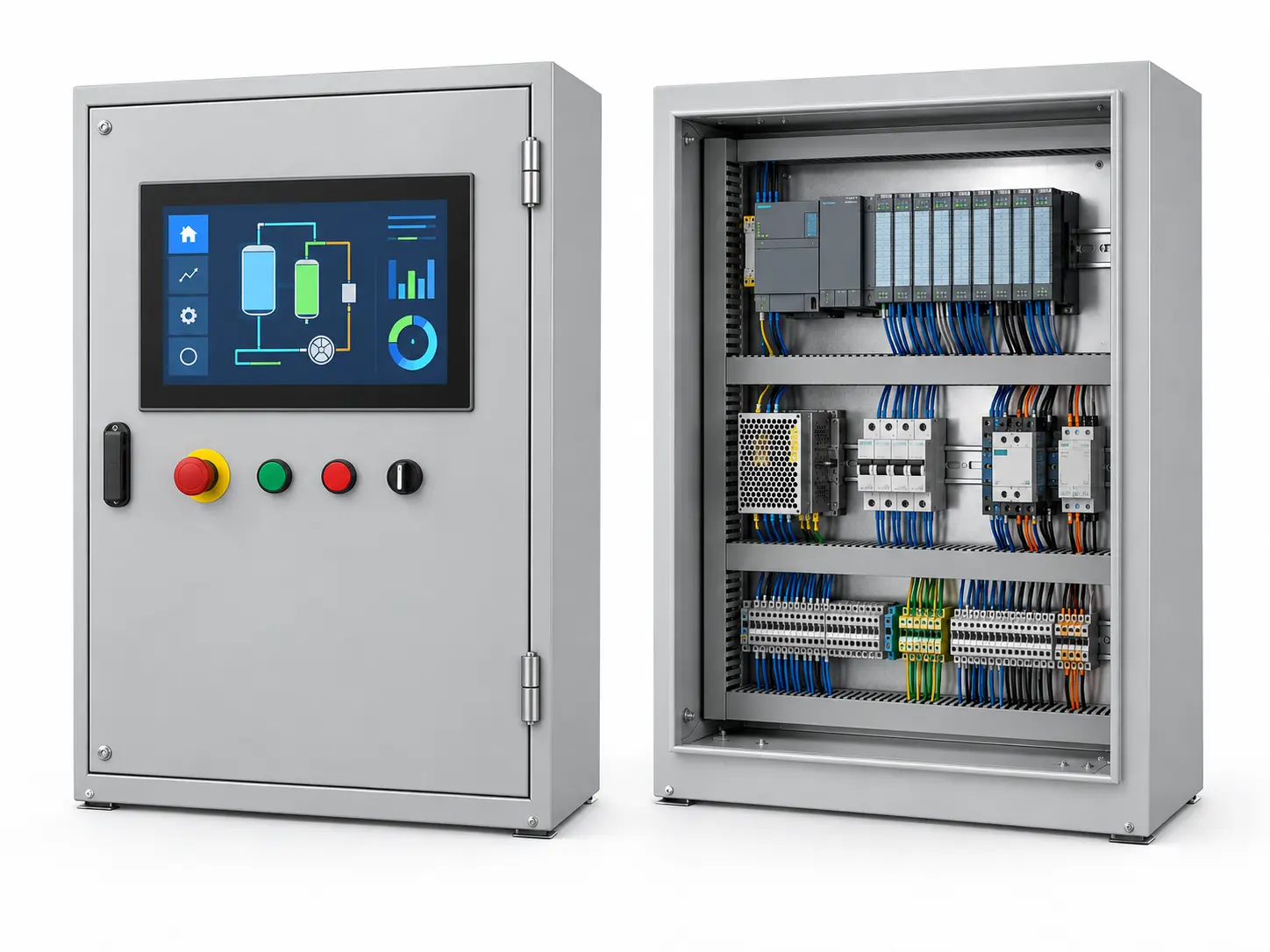

Industrial Control Panels

Control panels for industrial applications

Engineered industrial control panels with PLC-based control and a front-door HMI. Coordinate control functions, power monitoring and BMS or SCADA interfaces around your application.

PLC and I/O integration
Front-door HMI operator interface
Power and control component layout
Field wiring and terminal requirements
BMS and SCADA interface planning
Enclosure selection for the installation environment

Download flyer Request a quote

Component selection, final electrical ratings and certification requirements are confirmed for each project.

Branch-circuit distribution

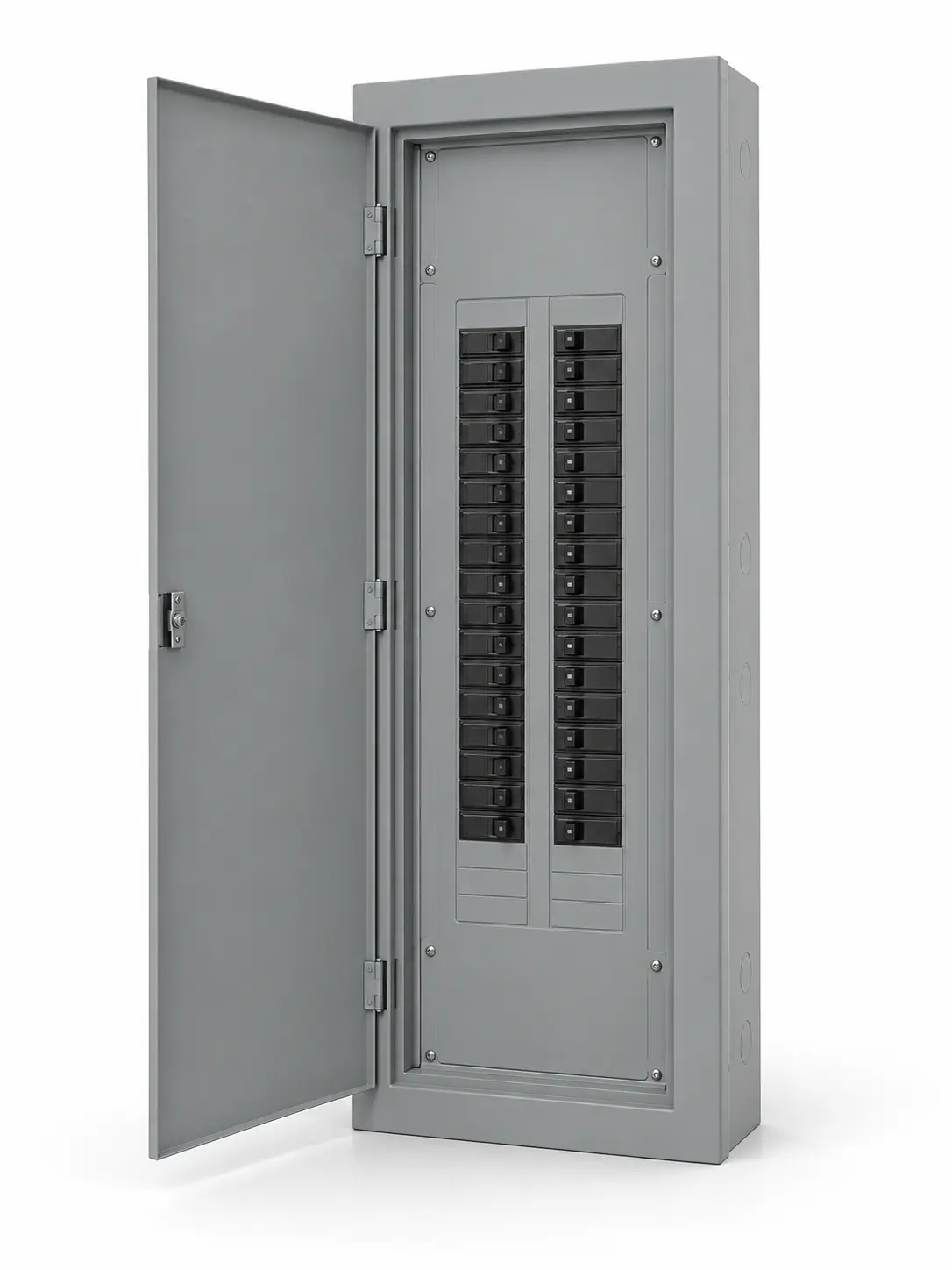

Panelboards

Branch-circuit power distribution

Define your panelboard around the branch circuits and loads it will serve. Share the panel schedule and installation requirements with Atlas to develop the project configuration.

Branch-circuit distribution planning
Main and feeder arrangement
Breaker schedule and circuit allocation
Space for future circuits
Enclosure and mounting requirements

Download flyer Request a quote

Available ratings, breaker compatibility, enclosure construction and certification requirements are confirmed with the project quotation.

Variable frequency drives

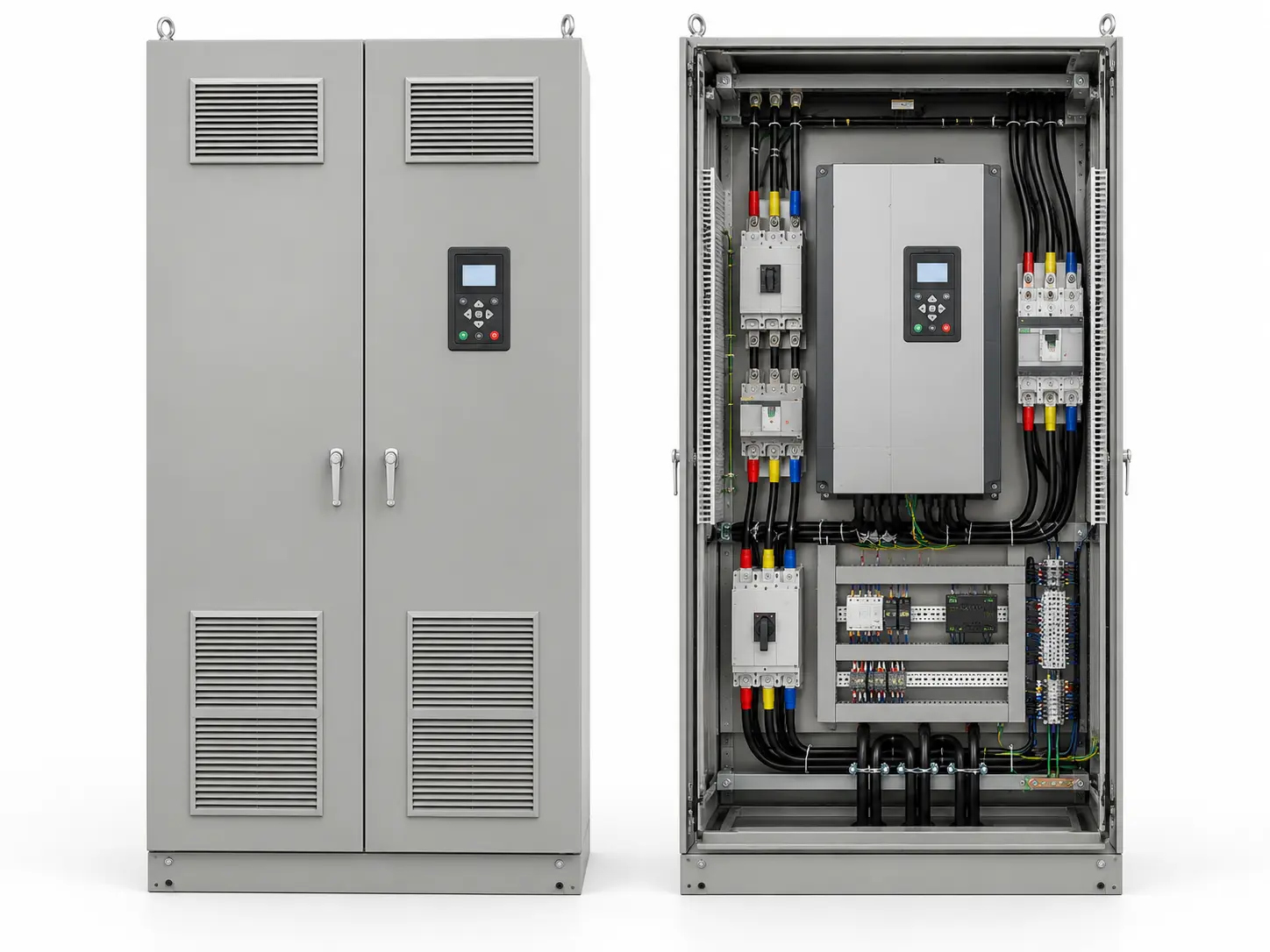

VFD Panels

Engineered motor control and drive integration

Configure a variable frequency drive panel around your motor, load and operating environment. Atlas combines drive integration, protection and operator controls in a project-specific enclosure.

Variable frequency drive and motor protection
Front-door operator controls and drive interface
Power and control wiring integration
Ventilation and thermal management planning
PLC, BMS and SCADA interface requirements
Enclosure layout coordinated with service access

Download flyer Request a quote

Drive sizing, bypass arrangement, thermal performance and electrical ratings are confirmed for the selected application.

Listed to UL 891

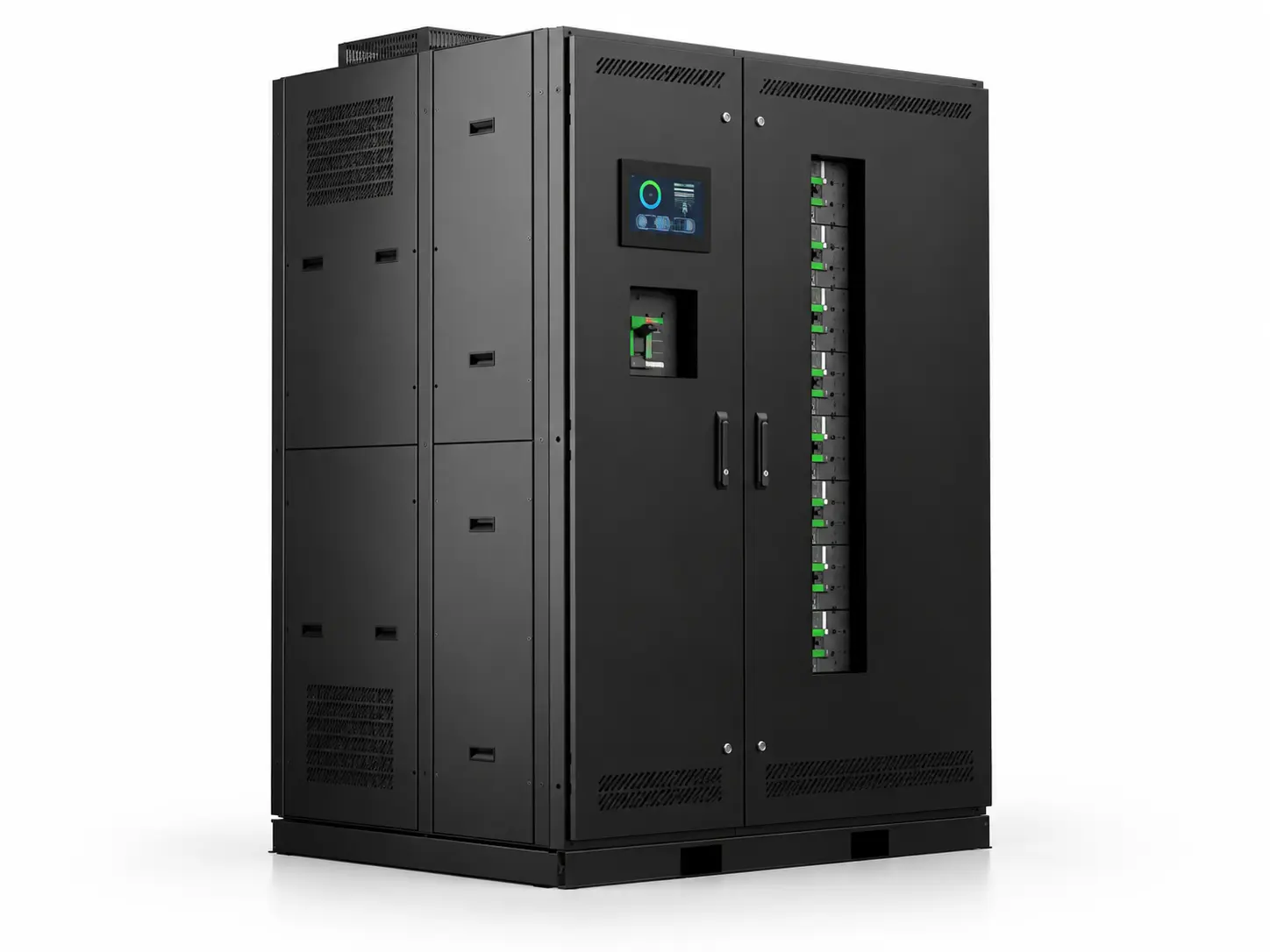

Data Center PDU

UL Listed power distribution units

UL Listed Data Center PDUs

UL File No. E528754

Atlas manufactures UL Listed data center PDUs, listed to UL 891, with transformer, protection and monitoring functions in an integrated enclosure. Specify the PDU around your IT load, voltage requirements and facility monitoring system.

Dry-type transformer section
HMI display for metering, alarms and diagnostics
Main breaker and branch-circuit distribution
Surge protection and branch-circuit monitoring
Ventilated enclosure with service access
BMS and SCADA monitoring integration

Download flyer Request a quote

Power ratings, voltage options, transformer characteristics and certification requirements are confirmed by Atlas for each project.

Temporary generator connection

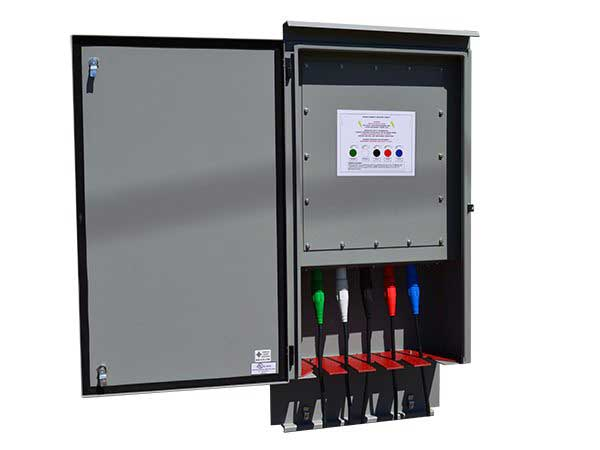

Generator Docking Stations

A dedicated connection point for temporary power

Plan a generator docking station around your facility’s temporary power requirements. Coordinate the generator connection, protective devices and transfer arrangement with Atlas engineering.

Generator cable connection interface
Enclosure and access requirements
Phase, neutral and grounding connections
Coordination with the facility transfer arrangement
Connection identification and operating instructions

Download flyer Request a quote

Reference image. Final connector arrangement, ratings, protection and enclosure requirements are confirmed for each project.

Service connection enclosures

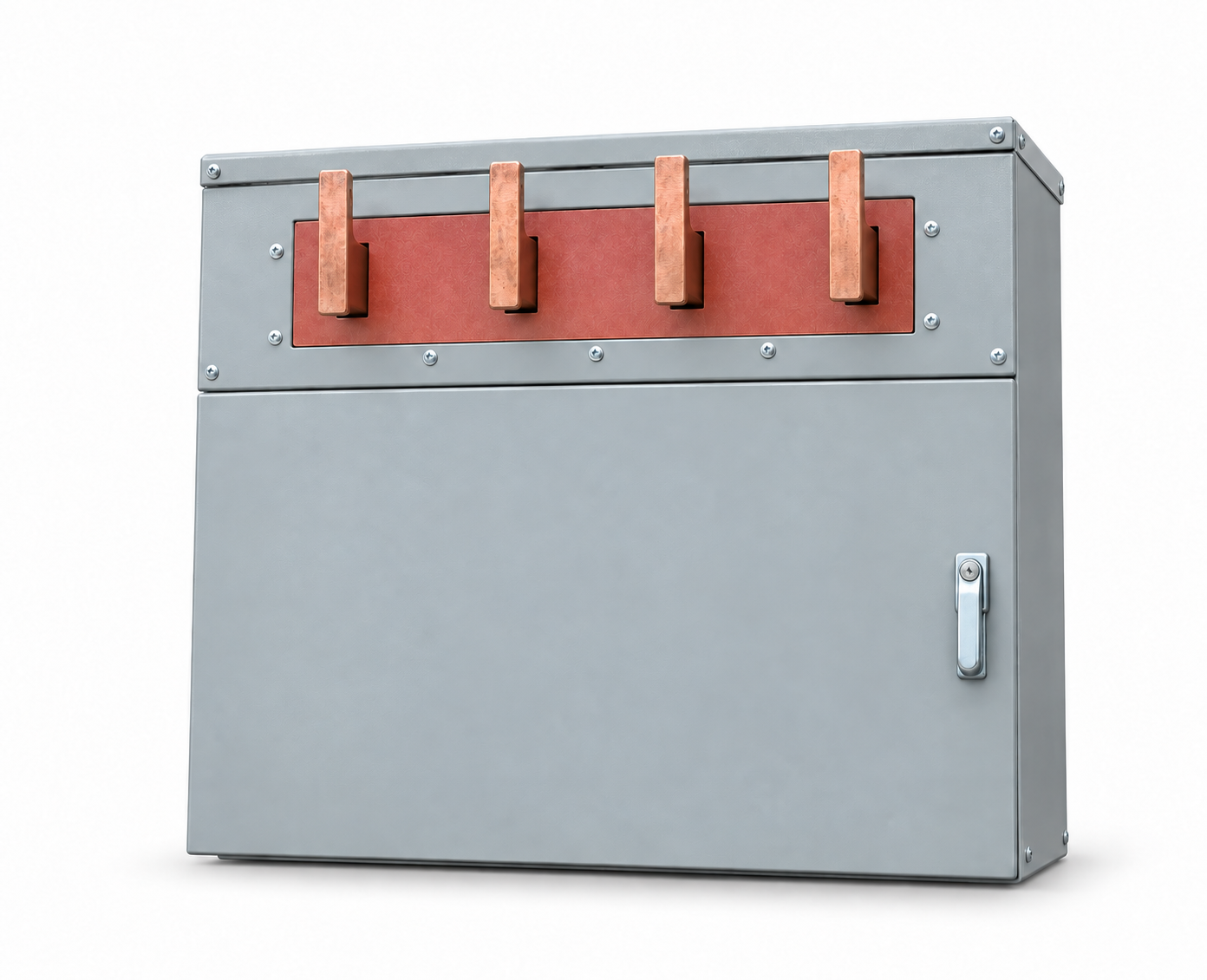

Utility Tap Boxes

Engineered utility connection and bus termination

Define a utility tap box around your service connection and enclosure requirements. Atlas coordinates the busbar interface, insulated supports and access arrangement with your project and serving utility.

Service connection enclosure
Busbar interface and termination layout
Insulated busbar supports and entry interface
Enclosure dimensions and access planning
Utility and installation coordination

Download flyer Request a quote

Final construction, clearances, ratings and utility acceptance require project-specific engineering review.
